DPL Series Dynamic pump in Bangladesh

DPL Series Dynamic Pump

DPL Series Dynamic Pump

DPL Series Dynamic Pump

Duty Parameter

Capacity: up to 12 m3/hr.
Head: up to 203 meter.
Temp: up to 30 ℃.
Delivery Size: DN 25

Product Details

Design Features

Mounting: Vertical inline.

Stage : 2 to 6.

Design pressure: 20 bar.

Applications

Water supply

Pressure boosting

Sprinkling System

General industry

Material of construction

Casing: SS (304/316L) cast iron.

Impeller: SS(304/316L)

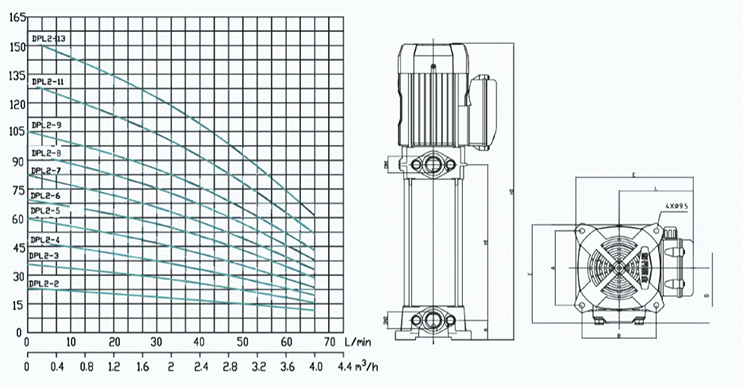

Carve

MODEL	POWER	1.2 m³/h	1.6 m³/h	2 m³/h	2.4 m³/h	2.8 m³/h	3.2 m³/h	3.6 m³/h	4 m³/h
DPL2-7-1.1	1.1 KW, 220v, 1 Phase	70 m	67.5 m	65.5 m	57.5 m	52.5 m	46 m	41 m	33.7 m
DPL2-9 1.5	1.5 KW, 220v, 1 Phase	93 m	88.5 m	84 m	77 m	68.5 m	60 m	52.5 m	43 m
DPL2-11-1.8	1.8 KW, 220v, 1 Phase	114 m	107.5 m	102 m	92 m	82.5 m	72 m	63 m	52.5 m

MODEL	POWER	1.2 m³/h	1.6 m³/h	2 m³/h	2.4 m³/h	2.8 m³/h	3.2 m³/h	3.6 m³/h	4 m³/h
DPL2-7-1.1	1.1 KW, 220v, 1 Phase	70 m	67.5 m	65.5 m	57.5 m	52.5 m	46 m	41 m	33.7 m
DPL2-9 1.5	1.5 KW, 220v, 1 Phase	93 m	88.5 m	84 m	77 m	68.5 m	60 m	52.5 m	43 m
DPL2-11-1.8	1.8 KW, 220v, 1 Phase	114 m	107.5 m	102 m	92 m	82.5 m	72 m	63 m	52.5 m

MODEL	POWER	1.2 m³/h	1.6 m³/h	2 m³/h	2.4 m³/h	2.8 m³/h	3.2 m³/h	3.6 m³/h	4 m³/h
DPL2-7-1.1	1.1 KW, 220v, 1 Phase	70 m	67.5 m	65.5 m	57.5 m	52.5 m	46 m	41 m	33.7 m
DPL2-9 1.5	1.5 KW, 220v, 1 Phase	93 m	88.5 m	84 m	77 m	68.5 m	60 m	52.5 m	43 m
DPL2-11-1.8	1.8 KW, 220v, 1 Phase	114 m	107.5 m	102 m	92 m	82.5 m	72 m	63 m	52.5 m

MODEL	POWER	1.2 m³/h	1.6 m³/h	2 m³/h	2.4 m³/h	2.8 m³/h	3.2 m³/h	3.6 m³/h	4 m³/h
DPL2-7-1.1	1.1 KW, 220v, 1 Phase	70 m	67.5 m	65.5 m	57.5 m	52.5 m	46 m	41 m	33.7 m
DPL2-9 1.5	1.5 KW, 220v, 1 Phase	93 m	88.5 m	84 m	77 m	68.5 m	60 m	52.5 m	43 m
DPL2-11-1.8	1.8 KW, 220v, 1 Phase	114 m	107.5 m	102 m	92 m	82.5 m	72 m	63 m	52.5 m
